Boosting productivity with the HPR400 reaming system from MAPAL: Three new solutions

Complex processes and high-quality requirements call for fine machining systems that are effective, precise and easy to use. With the HPR400 and HPR400 Plus for the ultra-productive reaming of large diameters, MAPAL is meeting these demands.

These multi-bladed tool systems offer the advantage that the inserts with one (HPR400) or four (HPR400 Plus) cutting edges are exchangeable by the customer directly on site and ensure maximum accuracy thanks to high-precision insert seats. The focus of current developments is three new solutions that continue to improve productivity and sustainably reduce costs for machine shops.

One-shot solution for finish machining with high stock allowances

In machining situations with high stock allowances in finish machining, the combination tool with ISO leading stage and HPR400 system is particularly attractive. It enables users to machine bores with up to 6 mm of stock allowance in a single working step. The ISO inserts handle the main machining, while the HPR400 system takes care of the finish machining. This design results in short cycle times for the customer. In addition, there’s no need for insert setting.

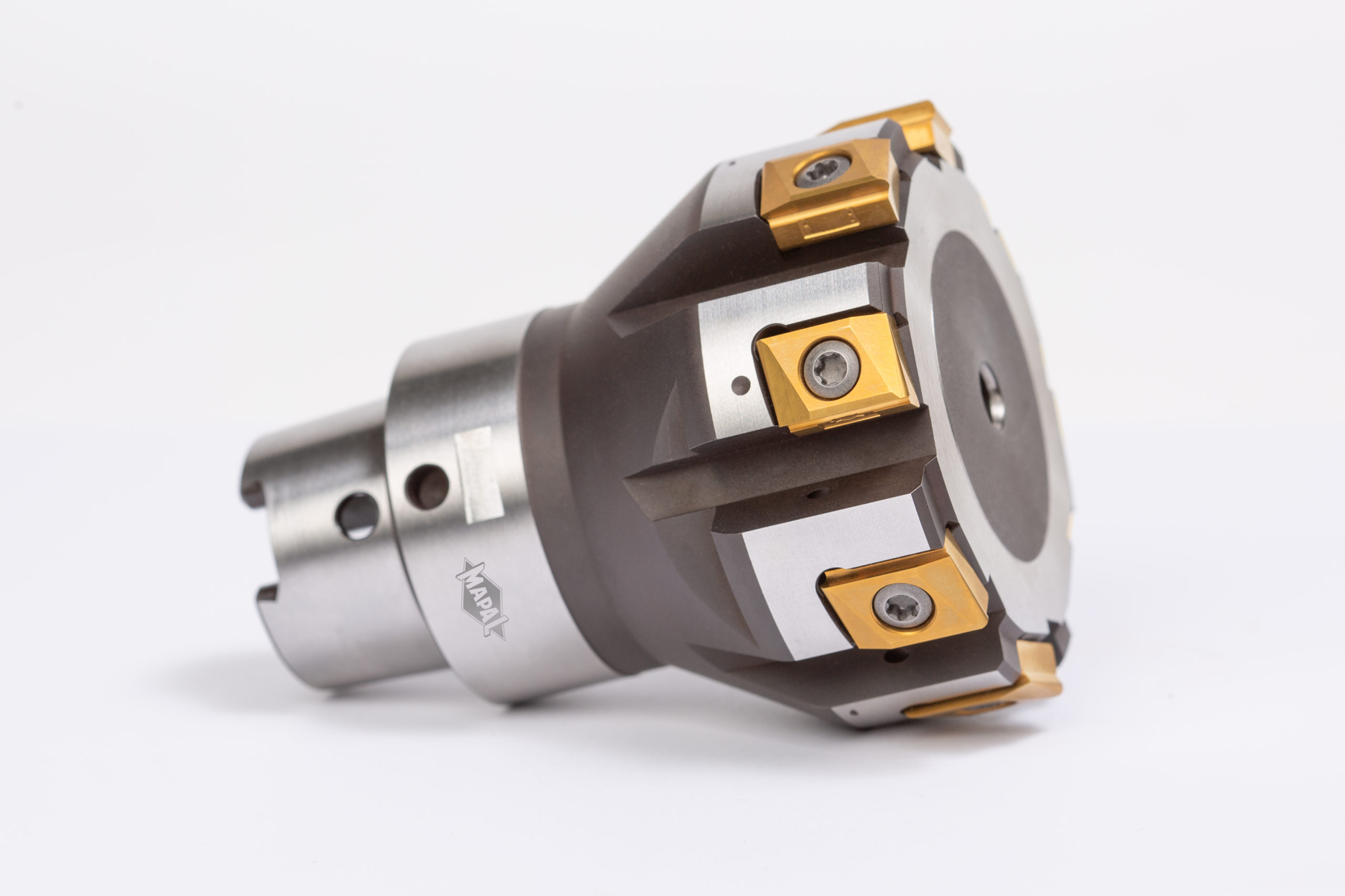

New HPR400 Plus concept for face grooves

The HPR400 plus series was further developed for machining face grooves, with indexable inserts explicitly adapted for bores with special base contours (facing or face groove). MAPAL says this new tool concept with two usable cutting edges improves cost-effectiveness. Despite the face groove, tool and inserts are stable and reliable in machining. Applications can be found in almost all steering knuckles and bearing bores where clearance is necessary at the bottom of the bore.

HPR400 with PCD inserts for machining stator housings: Innovative solutions for electromobility

The HPR400 system is also suitable for finishing the stator bore in electric motors. Greater demand for motors in higher quantities for mid-segment vehicles is prompting a growing need for productive solutions.

In contrast to the blades on a fine boring tool, HPR400 tools with PCD inserts do not require setting. Due to the higher number of cutting edges, machining speeds are much faster than for a fine boring tool. The technology enables higher output with lower effort, boosting productivity.

Flexible, cost-effective, sustainable and state-of-the-art

With the further developments of HPR400 and HPR400 Plus systems for dedicated applications, MAPAL is highlighting its ambition to provide customers from the vehicle construction and fluid power sectors with pioneering solutions for a wide range of challenging machining processes.
